Product Description
1 Gigabit per second, Screened 4 twisted pair, high performance cable for new installations with a frequency range up to 250MHz.
ISO/IEC 11801, EIA/TIA 568C.2,YD/T1019

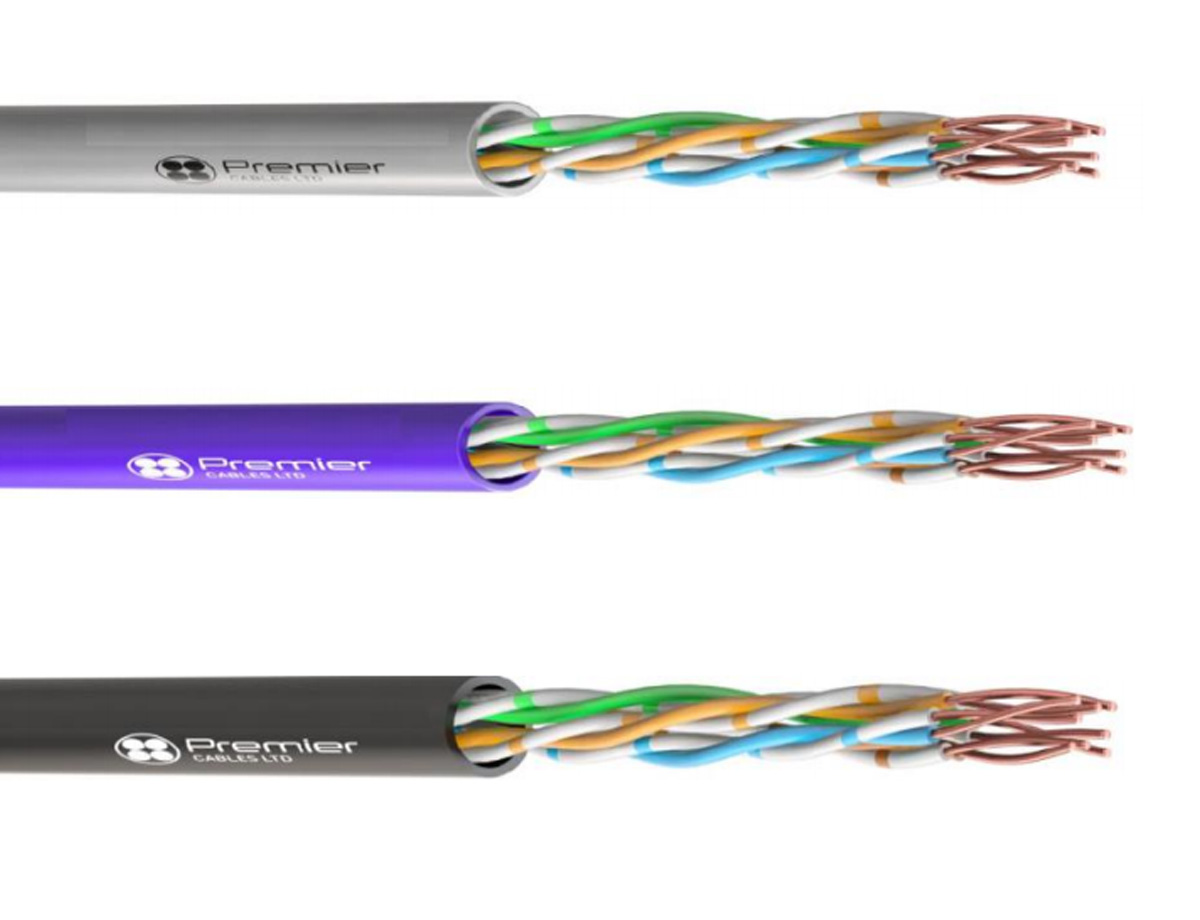

CAT 6 UTP
1 Gigabit per second, Screened 4 twisted pair, high performance cable for new installations with a frequency range up to 250MHz.
Technical Specification
| Conductor | Class 1 solid copper conductor |
|---|---|
| Insulation | HDPE (High Density Polyethylene) |
| Rip Cord | Nylon |
| Drain Wire | Tinned copper |
| Sheath | LSZH (Low smoke zero halogen) Purple, PE (Polyethylene Duct Grade) Black, PVC (Polyvinyl chloride) Grey |
| Rated Voltage [V] | 300 |
| Nominal O/D | 6.7mm |
| Temperature Rating | -20°C to +50°C |
| Core Identification | Pair 1: Blue White/Blue, Pair 2: Orange White/Orange, Pair 3: Green White/Green, Pair 4: Brown White/Brown |
| Minimum Bending Radius | 9 x O/D flexing |
