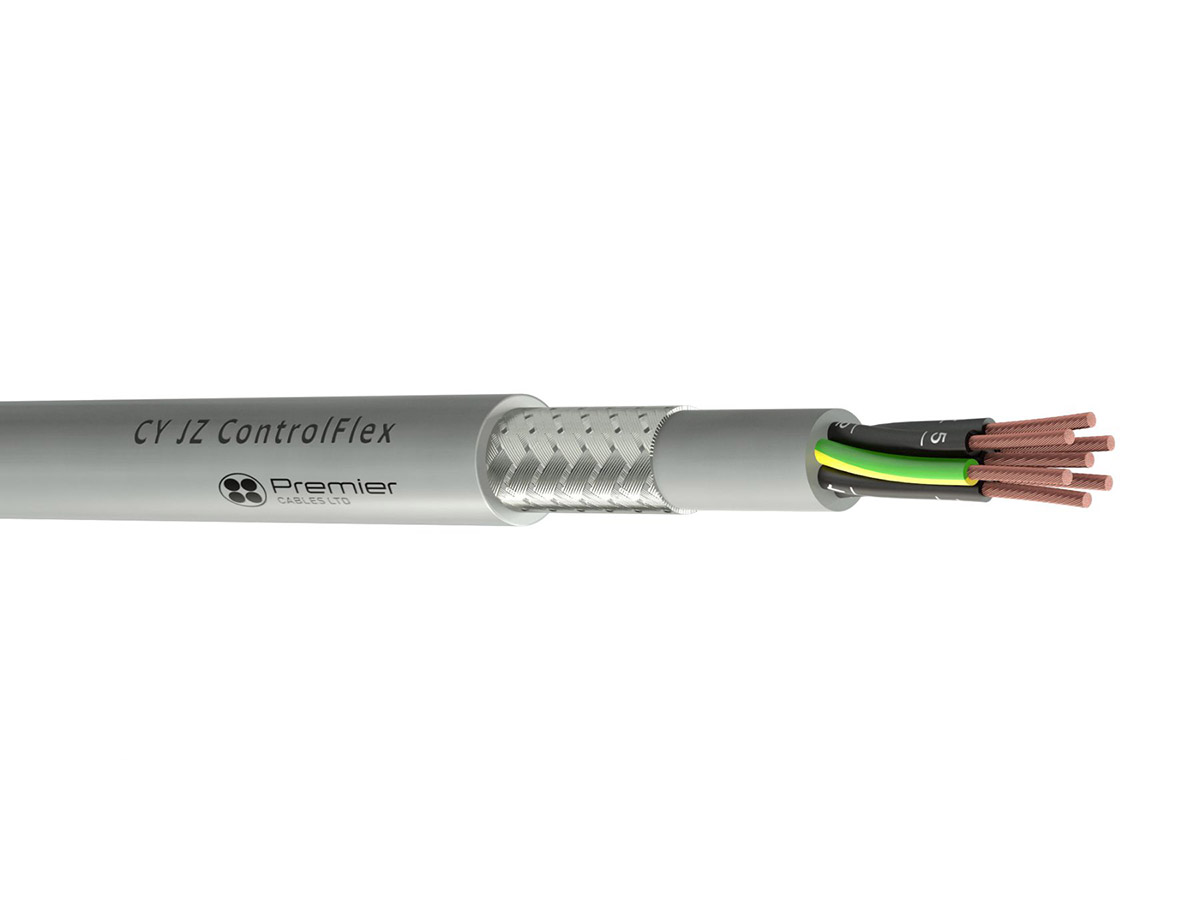

Designed to avoid external high frequency interference, Screened Control Cables are flexible in design and application.
Designed to avoid external high frequency interference, Screened Control Cables are flexible in design and application. Examples include control, signalling, measurement, motor and robotics.
VDE 0207-363-3, VDE 0285-525-2-51, VDE 0285-525-1, VDE 0285 -525-2-11,VDE 0482-332-1-2, VDE 819-102
| Conductor Material | Copper, bare |
|---|---|
| Conductor Class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core Insulation | PVC |
| Core Identification | 1,0 to 10 mm² : black cores with continuous figure imprint in white, Cross sections from 0,14 to 0,75 mm² coloured cores acc. to DIN 47100 |
| Bedding | PVC (Polyvinyl Chloride) |
| Screen | Tinned copper wire braid |
| Outer Sheath | PVC |
| Sheath Colour | Grey, RAL 7001 |
| Rated Voltage [V] | 300 / 500 |
| Testing Voltage [V] | 1200 / 1500 |
| Insulation Resistance | > 20 MΩ x k |
| Current-Carrying Capacity | DIN VDE 0295 (see technical guidelines) |
| min bending radius fixed [x d] | > 20mm ∅: 10, bis 12mm ∅: 5 x d, bis 20mm ∅: 7.5 x d |
| min bending radius moved [x d] | > 20mm ∅: 20, bis 12mm ∅: 10 x d, bis 20mm ∅: 15 x d |
| working temp fixed min/max [°C] | -30°C up to +80 |
| working temp. moved min/max [°C] | -5°C up to +70 |
| Burning Behaviour | IEC 60332-1: self-extinguishing and flame-retardant |
| Approvals | VDE 0812 |
| Temperature Moved | -5° C to 70° C |
| Temperature Unmoved | -40° C to 80° C |
